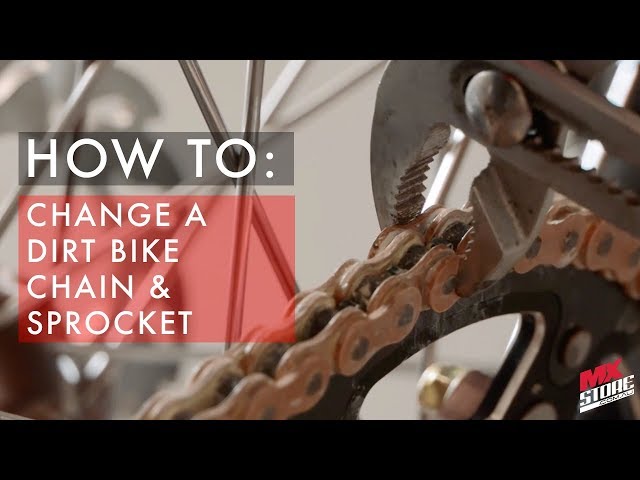

Changing the chain on your dirt bike may sound like a job for a mechanic, but with the right tools and a careful approach, you can do it yourself. Replacing a worn-out chain is important for safety, performance, and protecting your bike’s sprockets.
If you ride regularly, learning this skill saves you both time and money. This guide will show you the step-by-step process to change your dirt bike chain, explain the tools you need, highlight common mistakes, and share helpful tips even many experienced riders overlook.
Why Changing The Chain Matters
The dirt bike chain transfers power from the engine to the rear wheel. Over time, chains stretch, links get stiff, and dirt increases wear. A bad chain can cause power loss, chain slips, or even break while riding, which is dangerous. Regularly changing your chain ensures a smoother ride, better throttle response, and less wear on the sprockets. While replacing the chain, you also get the chance to inspect other drive parts for damage.
Tools And Materials You Will Need
Before you start, prepare everything to avoid rushing or missing steps. Here’s what you need:
- New chain (correct size and type for your bike)
- Chain breaker tool or grinder
- Chain rivet tool (if using rivet-type master link)
- Needle nose pliers
- Socket set and wrenches
- Flathead screwdriver
- Chain lube or grease
- Gloves
- Rag or brush for cleaning
Check your dirt bike’s manual for the correct chain size and type (e. g. , 520, 428, O-ring, X-ring). Most off-road bikes use a 520 chain, but always confirm.
Preparing Your Dirt Bike
A clean, safe workspace helps prevent mistakes. Place your bike on a stand so the rear wheel is off the ground. This makes it easier to rotate the wheel and access the chain.
- Clean the chain and sprockets with a brush and degreaser. Removing old dirt lets you inspect parts clearly and makes installation smoother.
- Shift into neutral so you can spin the rear wheel by hand.
- Take a close look at the sprockets. If teeth are hooked or worn, replace them too. Installing a new chain on old sprockets reduces chain life.
Removing The Old Chain
How you remove the chain depends on the type of master link:
For Clip-type Master Link
- Find the master link—it usually looks different than other links.
- Use needle nose pliers or a flathead screwdriver to gently pry off the clip.
- Remove the plate, then push out the master link.
- Pull the chain off the sprockets.
For Rivet-type Master Link
- Use a chain breaker tool to push out one of the pins.
- If you don’t have a chain breaker, use a grinder to carefully grind off the end of a pin, then tap it out with a punch.
- Once the link is broken, pull the chain off.
Tip many miss: Count the number of links on your old chain and compare to the new one. Sometimes new chains are slightly longer and must be sized.
Sizing And Preparing The New Chain
Chains are sold longer than needed. You must size the new chain to fit your bike.
- Lay the old and new chains side by side on a clean surface.
- Match link for link. If your old chain was the correct size, use it as a guide.
- Mark where to cut the new chain. Always double-check—cutting too short means you need a new chain.
- Use the chain breaker or grinder to remove the extra links.
Example: Common Chain Sizes
Here is a quick reference for some popular dirt bike models:
| Bike Model | Common Chain Size | Link Count |
|---|---|---|
| Honda CRF250R | 520 | 114 |
| Kawasaki KX450F | 520 | 114 |
| Yamaha YZ125 | 520 | 116 |
Not all bikes use the same chain length. Always confirm with your manual.
Installing The New Chain
With your new chain cut to length, it’s time to fit it to the bike.
- Loop the chain around the front and rear sprockets. Make sure it sits correctly on the teeth.
- Bring the ends of the chain together at the rear sprocket.
- Install the master link.
Clip-type Master Link
- Insert the link through both chain ends.
- Add the outer plate, then snap on the clip.
- The closed end of the clip should face the direction of chain travel.
Rivet-type Master Link
- Insert the link and plate.
- Use a chain rivet tool to flare the ends, securing the plate in place.
Practical tip: Use a small amount of chain lube on the master link before installing. This prevents sticking and rust.
-1.jpg)
Credit: blog.pro-x.com
Adjusting Chain Tension
Proper tension is critical. Too tight, and you stress the bearings and chain. Too loose, and the chain can slip off.
- Find your bike’s recommended chain slack—usually around 30–50 mm (1.2–2 inches) of up-and-down movement midway between the sprockets.
- Loosen the rear axle nut.
- Turn the chain adjusters equally on both sides to set the right slack.
- Spin the wheel and check slack at multiple points. Chains wear unevenly.
- Tighten the axle and recheck slack.
Chain Tension Data For Popular Bikes
| Bike Model | Recommended Slack |
|---|---|
| Yamaha YZ250F | 35–45 mm |
| KTM 350 SX-F | 30–40 mm |
| Kawasaki KLX140G | 35–50 mm |
Always check the manual for the most accurate measurement.
Final Checks Before Riding
Never skip this step. Double-check the following:
- The master link is fully seated and the clip is facing the right way.
- Chain tension is correct, and the wheel is straight (use the marks on the swingarm).
- Sprockets are clean and not excessively worn.
- All nuts and bolts are tight, especially the rear axle.
Spin the wheel by hand. The chain should move smoothly with no tight spots or binding.
Lubricating The New Chain
A new chain needs proper lubrication to reduce friction and prevent rust. Use a chain lube designed for off-road bikes.
- Spray lube on the inside of the chain while rotating the rear wheel.
- Wipe off excess with a rag.
- Lube after every ride, especially in wet or muddy conditions.
Common Mistakes To Avoid
Many beginners, and even experienced riders, make small errors that lead to bigger problems:
- Cutting the new chain too short. Always measure twice. A chain that’s too short can’t be fixed.
- Reusing a damaged master link. Always use the new master link supplied with your chain.
- Forgetting to check sprockets. Worn sprockets eat new chains quickly.
- Setting wrong tension. Too tight or too loose will lead to premature wear.
- Installing the clip backwards. The open end should never face forward.
.jpg)
Credit: blog.pro-x.com
When To Replace The Sprockets
It’s smart to check the sprockets whenever you replace the chain. Here’s a simple comparison:
| Sprocket Condition | What You See | What to Do |
|---|---|---|
| Good | Teeth are even, not hooked | Keep using |
| Worn | Teeth look sharp or hooked | Replace sprockets |
| Damaged | Broken/missing teeth | Replace immediately |
Insider tip: Always change chain and sprockets together. Mixing new and old parts can cause rapid wear.
Hidden Insights Even Riders Miss
- Chain alignment is as important as tension. Misaligned chains create uneven wear and can cause derailment. Use the alignment marks on the swingarm, but also visually check the chain runs straight from the rear to the front sprocket.
- Master link inspection: After your first short ride, check the master link again. Sometimes new links settle, and a loose clip or plate can lead to failure.
These small checks can save you from costly repairs and breakdowns.
Safety Tips
- Always wear gloves to protect your hands from sharp chain edges.
- Work in a well-lit area.
- Dispose of old chains safely—they are heavy and sharp.
- If you’re unsure about any step, ask a mechanic or experienced rider for guidance.
For more technical details, you can refer to the official American Motorcyclist Association.
Frequently Asked Questions
How Often Should I Replace My Dirt Bike Chain?
Chain life depends on riding conditions, maintenance, and chain quality. Most riders replace chains every 1,000–3,000 miles. If you ride in mud, sand, or rarely clean your chain, it may wear out sooner.
Do I Need Special Tools To Change A Dirt Bike Chain?
You need a chain breaker tool and possibly a chain rivet tool for rivet links. Clip-type master links need only pliers or a screwdriver, but proper tools make the job much easier and safer.
Can I Reuse My Old Master Link?
No. Always use the new master link provided with your new chain. Old links may be stretched or weak, risking chain failure.
What Happens If My Chain Is Too Tight Or Too Loose?
A chain that’s too tight strains the bearings and can snap. Too loose, and it may derail or slip on the sprockets. Always set chain slack to your manufacturer’s recommended range.
Should I Replace Sprockets With The Chain?
Yes. Worn sprockets will quickly ruin a new chain. Changing both at the same time ensures smooth power delivery and longer life for both parts.
Changing your dirt bike chain is a manageable job that improves performance, safety, and gives you a better understanding of your machine. Take your time, follow each step, and your bike will thank you with a smoother, more reliable ride.
